Homend Sink Top Air Switch Kit, Garbage Disposal Air Switch Sink Top Button Single Outlet Single Control for Dishwasher

Sink Top Air Switch Kit

Specification:

Outlet: Single
Button: one
Size: Short
Power: Lower than1HP
Color:Silver
Power Box
US Power Plug

Mounting Steps:

Step 1:

Mount the push button directly through a standard sink hole.
-OR-
Mount the push button through the counter top by drilling a 1-1/4″ diameter hole.
Place the rubber gasket between push button and the top of sink counter.
Tighten the plastic nut under the sink counter to ensure a watertight seal.
The optional stainless steal washer is used for sink openings larger than 1-1/4″ diameter.Position it between the pish button and the rubber gasket.

Step 2

Attach air tubing between push button and piwer midule.
Push the tubing tightly onto the molded protrusions.

Step 3

Plug power module into a deducated, grounded 220V/120V AC outlet that is continuously energized.

Step 4

Plug disposer cord into power module.
Press push button to ensure that the Countertop Switch turns the disposer on and off.
Be sure that the control system is operating properly before using the unit.
Press and release the Countertop Switch button to turn the disposer on. Press and release again to turn the disposer off.
NOTE: Disposer may start when disposer cord is plugged into the power module. Push the Countertop Switch button once to stop the disposer.

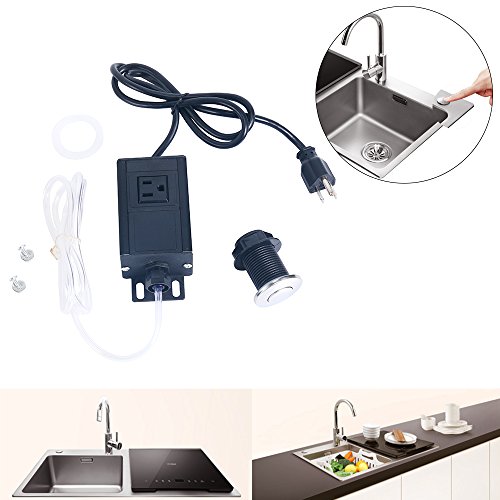

Package includes:

1 Power Box
1 3FT Power Plug
1 Push Button
1 White Button Cover
Mounting Screws
1 5FT Air Tube

Product Features

  • EASY TO INSTALL – Air Switch Kit can be mounted easily to any Sink or Counter top installation.
  • SILVER CHROME FINISH: designed to complement any Modern or Traditional Kitchen Faucet Design.
  • UNIVERSAL: Air Switch kit is a stylish alternative to the traditional wall switch and a perfect fit for Island Installations and works with any disposer.
  • HIGH SECURITY — It made of high quality chrome material. Waterproof, anti-leakage and you can even operate it with your wet hand.
  • PACKAGE INCLUDES: Power Module , 5 Ft Long Air Tube, 3 Ft Power cable,air switch Button, mounting Screws, 1 white button cover
