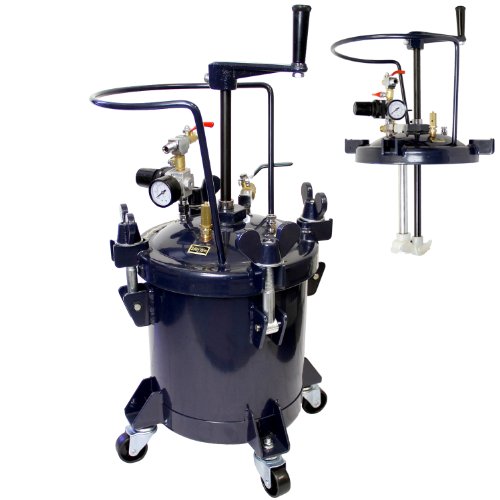

TCP Global Commercial 2.5 Gallon (10 Liters) Spray Paint Pressure Pot Tank with Manual Mixing Agitator

Excellent for Commercial Painting or Situations where a large amount of spraying is required. The Spray System gives you the benefit of storing a large volume of paint that can be applied rapidly, saving you time and money. Can be used with a broad range of coatings like automotive, oil based, latex, varnishes, lacquers, primers, wood coatings, adhesives and more.

Heavy Duty 2.5 Gallon Pressure Pot Tank Specifications:

– Paint pot capacity: 2.5 Gallons (10 Liters)
– Powder coated tank finish that is easy to clean
– Clamp on lid (4 clamps) with an air tight sealing gasket
– Double output regulation
– Tank fluid pressure gauge from 0 to 100 psi (0 to 7 bar)
– Working pressure: Optimal 20-30 psi (1.4 to 2.1 bar); Max operating pressure: 50 psi
– Air inlet and outlet: 1/4 in.; Fluid outlet: 3/8 in.
– Air pressure relief valve for safety set at 60 psi (4.0 bar)
– Manual hand crank mixing agitator
– Overall dimensions: 25 in. H x 14 in. W x 11 in. D (635 x 350 x 280 mm)
– Inside diameter: 9.5 in. (241 mm); Inside depth: 9.5 in. (241 mm)
– 4 Easy roll casters and a wide base for increased stability (castors removable)
– Fluid pickup tube has stainless filter screen
– Shut off ball valves on fluid and air outlets
– Includes a removable 2 gallon aluminum fluid liner bucket with handles
– Items that can be used in the pot: 2.5 gallon tank liners, Devilbiss or Binks part# PT-52 (2.7 gallon tank liners), 1 gallon paint cans, paint buckets that are under 2.5 gallons.
– Weight: 37 lbs.
– Includes instruction manual
– One year warranty

Product Features

• Heavy duty paint pressure pot tank with 2.5 gallons (10 liters) capacity
• Clamp on lid with manual hand crank mixing agitator
• Tank fluid pressure gauge from 0 to 100 psi; Working pressure: Optimal 20-30 psi; Max operating pressure: 50 psi
• Air inlet and outlet: 1/4″; Fluid outlet: 3/8″; Inside diameter: 9.5″; Inside depth: 9.5″
• Excellent for Commercial Painting or Situations where a large amount of spraying is required. Use for a broad range of coatings like automotive, oil based, latex, varnishes, lacquers, primers, wood coatings, adhesives and more!
