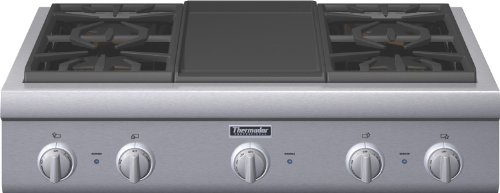

Thermador Professional : PCG364GD 36 Pro-Style Gas Rangetop with 4 Pedestal Star Burners

Dimensions & Weight
Overall Width: 35 15/16″
Overall Depth: 25 13/16″ (includes gas connection)
Overall Height including Gas Connection: 10 9/16″
Overall Height without Gas Connection: 8 1/16″
Required Cutout Width: 35 1/8″
Required Cutout Depth: 22 13/16″
Required Cutout Height: 7 11/16″
Minimum Distance from Rear Wall: 12″
Approximate Shipping Weight: 148 lbs.
Rangetop Features
Total Number of Rangetop Burners: 4
Cooking Surface: Porcelain
Gas Cooktop Burners: 4 @ 18,000 BTU
Center Front Burner: N/A
Center Back Burner: N/A
Center Electric Griddle: 6-Pass @ 1,630 W
Gas/Electrical Requirements
Total Natural Gas Connection Rating: 72,000 BTU
LP Convertible: Order Kit PALPKITHC
Total LP Gas Connection Rating: 60,000 BTU
Electrical Supply: 120V AC, 60 Hz
Required Circuit Breaker: 15 Amp
Power Cord: 96″, 3-wire
Natural Gas Inlet Connection: 1/2″ NPT (min. 3/4″ dia. flex line)
Natural Gas Supply Pressure: 6″ min. to 14″ max. water column (14.9 Mb to 34.9 Mb)
Natural Gas Manifold Pressure: 5″ water column (12.5 Mb)
Liquid Propane Inlet Connection: 1/2″ NPT (min. 3/4″ dia. flex line)
Liquid Propane Supply Pressure: 11″ min. to 14″ max. water column (27.4 Mb to 34.9 Mb)
Liquid Propane Manifold Pressure: 10″ water column (24.9 Mb)
Accessories
12″ Low Backguard: PA36GLBC
Griddle Fits over Two Burners: PAGRIDDLE
Wok Ring: PWOKRINGHC
12″ Grill with Drip Tray: PA12GRILHC
12″ Griddle Cover: PA12GCVRHC
12″ Maple Chopping Block: PA12CHPBLK
24″ Maple Chopping Block: PC24CHPBLK
Black Metal Knob Kit: PAKNOBLK
Blue Metal Knob Kit: PAKNOBLU
LP Conversion Kit: PALPHITHC

Product Features

36″ Pro-Style Gas Rangetop with 4 Pedestal Star Burners, Titanium-Surface Electric Griddle, Metal Knobs, Precision Simmering and Island Trim
Appearance Fuel Type : Gas Style : Sealed Burner Cooktop : Rangetop Continuous Grates : Yes Color : Stainless Steel Surface Color : Black Trim Color : Stainless Steel
Dimensions Actual Width : 35 15/16″ Actual Depth : 25 13/16″ Actual Height : 10 9/16″ Cutout Width : 35 1/8″ Cutout Depth : 22 13/16″
Burner Output Set 1 QTY : 4 Set 1 Output : 18000 Grill : No Griddle : Yes
Amps : 15 Voltage : 120 Volts
