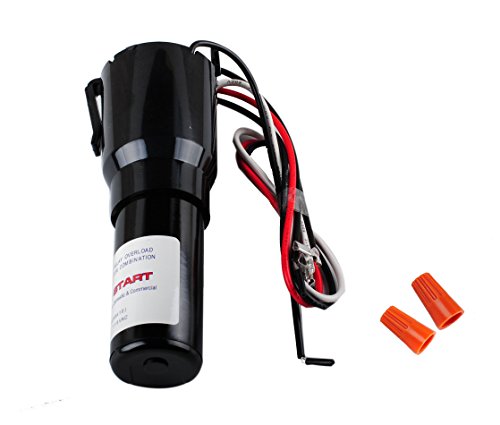

Wadoy RCO410 3 in 1 Compressor Hard Start Compacitor Kit For Refrigerators & Freezers 1/4-1/3 H.P. 115VAC

Specifications

●Replacement for model No. RCO410 (HS410)
●For compressor sizes 1/4 through 1/3 H.P. Voltage-115VAC
●Application Residential and Commercial Refrigerators and Freezers, For Use With RSIR, CSIR, PSC, and CSR Compressors, Includes Relay, Overload and Start Capacitor Refrigeration
●Extremely durable,long lasting refrigerators and freesers and easy to install

Installation Instructions

1. Disconnect power supply.

2. Remove old relay and overload.

3.Push terminal connected to white wire on RCO onto start terminal of compessor.

4. Push terminal connected to red wire on RCO onto run terminal of compressor.

5.Push terminal connected to black wore on RCO onto common terminal of compressor.

6.Connect one line wire which was removed from old relay to one of the line wrres of the RCO,using wire nut.

7.Connect other line wire which was removed from the old Overload to other line wire of the RCO,using wire nut.

Product Features

• Replacement for model No. RCO410 (HS410)
• For compressor sizes 1/4 through 1/3 H.P. Voltage-115VAC
• Application Residential and Commercial Refrigerators and Freezers, For Use With RSIR, CSIR, PSC, and CSR Compressors, Includes Relay, Overload and Start Capacitor Refrigeration
• Extremely durable,long lasting refrigerators and freesers and easy to install
• Non-original aftermarket part
